홈 제품 소개기계를 형성 기와 롤845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

제품 상세 정보:
원래 장소: 중국
브랜드 이름: NKH MACHINERY
인증: CE/SONCAP/CSA
모델 번호: YX41-211-845
결제 및 배송 조건:
최소 주문 수량: 1 단위
가격: 협상 가능
포장 세부 사항: 40FT 컨테이너, PLC 제어 캐비넷을 위한 나무상자에서 커터와 롤 포멀을 위한 벌거벗은 화물
배달 시간: 90 일로 일합니다
지불 조건: L/C, D/A, D/P, T/T
공급 능력: 5 유닛 / 달
지금 연락

상세 정보
이름: 금속 타일 성형 기계 원료: 사전 페인트 코일 시트
코일 무게: 10 톤 또는 요청에 따라 롤러 재료: 45# 강철
샤프트 직경: 75 밀리미터 제어 시스템: PLC 제어 시스템
칼날재를 줄이기: Cr12, 열처리

제품 설명

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

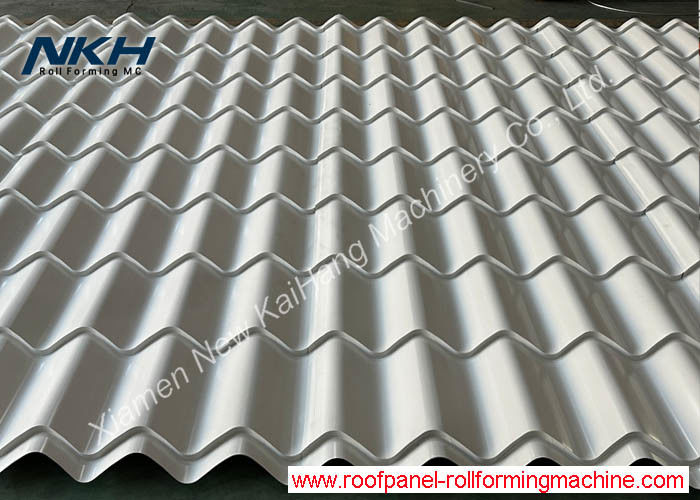

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

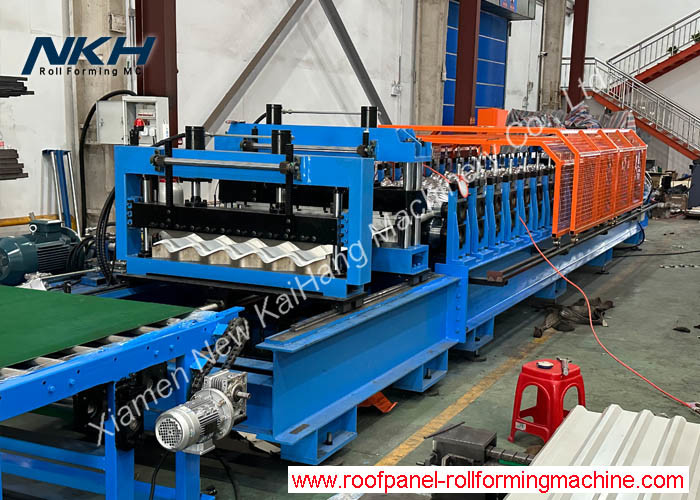

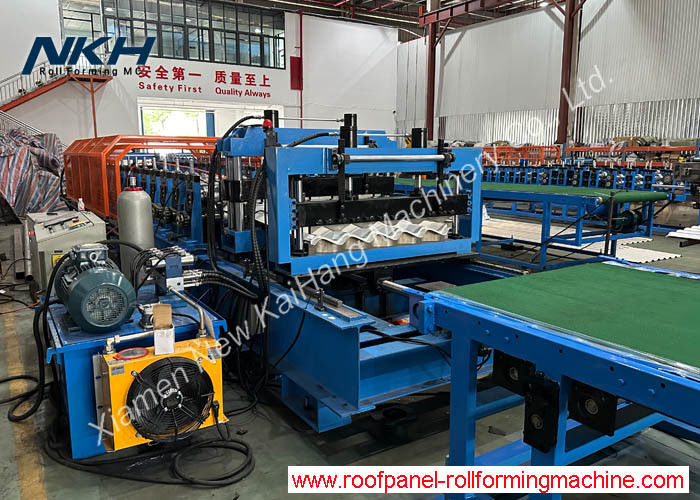

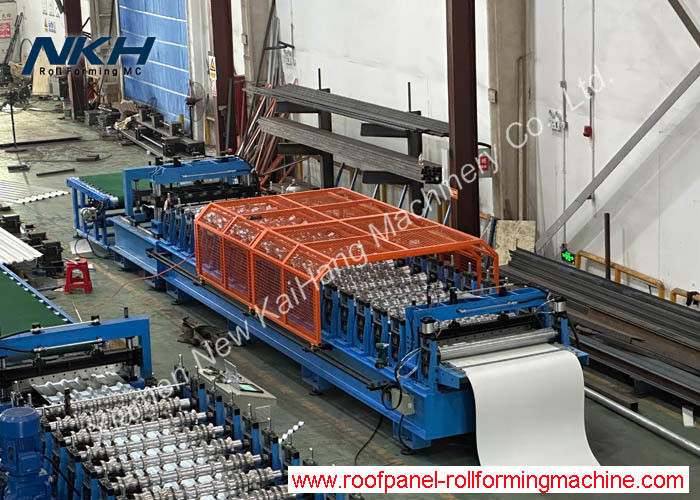

Drawings/Pictures of Complete Line:

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3
